🚨 One-Stop-Shop Sovol SV06 Klipper Configuration

This branch contains the Klipper configuration and firmware for the Sovol SV06 3D printer with the BTT SKR-Mini-E3-V3.0 motherboard.

If you were looking for my OSS Klipper Configuration for the Sovol SV06 with completely stock hardware, please refer to the master branch.

I am creating these files for my personal use and cannot be held responsible for what it might do to your printer.

❗☠️ I do not own this board so everything found on this branch is COMPLETELY UNTESTED ☠️❗

❗☠️ USE AT YOUR OWN RISK. YOU HAVE BEEN WARNED. ☠️❗

An Important Note

⭐ A big thank you to Github user transistor1. This branch would not have been possible without his help. Please checkout his profile here. ⭐

Installation Instructions

Electronic Wiring

Wire cables according to the following diagram: skr-mini-e3-v3.0 installation instructions

Download Firmware Precompiled by BIGTREETECH

  • firmware-USB.bin. Connect the SKR-Mini to the Raspberry Pi via USB connection.
  • firmware-USART2.bin. Use TFT port USART2 to communicate with raspberry pi. Connect the UART-TX of raspberry pi with the USART-RX2 of motherboard and connect the UART-RX of raspberry pi with the USART-TX2 of motherboard directly to communicate normally.

Alternatively, find instructions on how to build the firmware yourself here.

Flash Firmware

  1. Rename firmware-USB.bin or firmware-USART2.bin to firmware.bin. Important: If the file is not renamed, the bootloader will not be updated properly.
  2. Copy firmware.bin to the root directory of the microSD card (make sure the card is in FAT32 format).
  3. Power off the SKR-mini-E3-V3.0.
  4. Insert the microSD card.
  5. Power on the SKR-mini-E3-V3.0.
  6. After a few seconds, the SKR-mini-E3-V3.0 should be flashed.

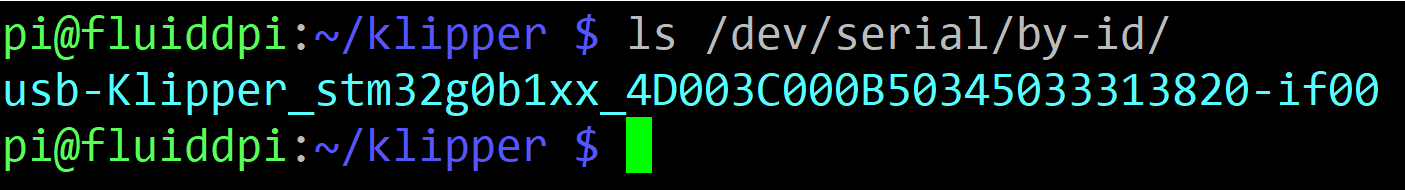

  7. You can confirm that the flash was successful, by running ls /dev/serial/by-id. If the flash was successful, you'll see something like the following: ls output

Download Klipper Configuration

  1. Download printer-skr-mini-e3-v3.cfg and rename it to printer.cfg. This is the only printer.cfg that you will be using. Anytime there is a reference to printer.cfg, you will use this printer.cfg that you just saved/renamed.
  2. Follow the instructions found in the Download Klipper Configuration section and onwards. 💡 Remember to use the printer.cfg that you saved in step 1.

Sources
