🚨 One-Stop-Shop Klipper Configuration

This branch contains the OSS Klipper configuration that can be used with any printer running Klipper.

Printer	Branch
Sovol SV06	master
Sovol SV06 Skr-Mini-E3-V3.0	skr-mini-e3-v3
Sovol SV06 Plus	sv06-plus
`{\normalsize{\textcolor{darkturquoise}{\texttt{All other printers}}}}`	⚡ `\small{\textcolor{darkturquoise}{\text{YOU ARE HERE}}}` ⚡

I am creating these files for my personal use and cannot be held responsible for what it might do to your printer. Use at your own risk.

Outline

Features
Stay Up-to-Date
Preface
Before You Begin
Installation Steps
- Download OSS Klipper Configuration
Adjust Your Slicer
Directory Structure
Support Me
FAQ
Useful Resources
Sovol Official Links
Sources

Features

💥 This Klipper configuration is an endpoint, meaning that it contains everything that you could possibly need in order to have an excellent Klipper experience! 💥 CoreXY users can rightly disagree and say that it lacks the quad gantry levelling macros. Please create a pull request if you can help in this regard!
Filament runout sensor usage implemented.
Minimum configuration settings for Mainsail/Fluiddpi to work.
A SuperSlicer config bundle that contains what are considered by many to be the best print settings available for any FDM printer (Ellis' SuperSlicer Profiles).
NEW A PrusaSlicer config bundle based on Ellis' SuperSlicer Profiles.
Macros
- Improved mechanical gantry calibration/G34 macro that provides the user audio feedback, and time to check the calibration.
- Misc macros: PRINT_START, CANCEL_PRINT, PRINT_END, PAUSE, RESUME.
- Parking macros (parks the printhead at various locations): PARKFRONT, PARKFRONTLOW, PARKREAR, PARKCENTER, PARKBED.
- Load/unload filament macros.
- PURGE_LINE macro.
- NEW TEST_SPEED macro. Find instructions here.
NEW Klipper Adaptive Meshing & Purging (KAMP) added (disabled by default)! Read about it here.

Stay Up-to-Date

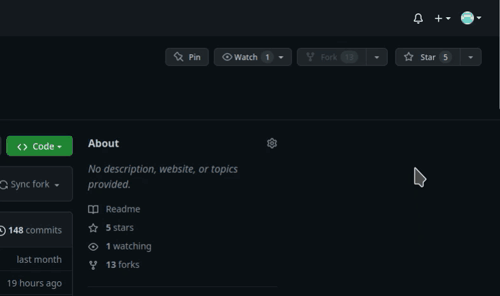

⭐ {\normalsize{\textcolor{goldenrod}{\texttt{Star this project}}}}

Watch for releases and updates.

Preface

Although I've made switching over to Klipper as easy as is possible, it can still be a challenge for some, especially considering that most of you have likely never used GNU+Linux. Save yourself the frustration, and fully read all the documentation on this page. Also note that Klipper is not a must, and is not for everyone. You can stick with Marlin, and have a fine 3D printing experience.

Before You Begin

This entire page is a 6 minute read. Save yourself hours of troubleshooting and read this documentation fully!
It is assumed that you already have a working printer.cfg and you already have your printer up and running Klipper.
The master branch of this repo contains step by step instructions on how to get Klipper going. If you are a beginner, you might find those instructions useful.
Make sure your printer is in good physical condition, because print and travel speeds will be a lot faster than they were before. Beginner's would be wise to go through the steps mentioned here. Consider yourself warned.
It is assumed that you are connected to your host Raspberry Pi (or other host device) via SSH, and that your printer motherboard is connected to the host via a data USB cable. 💡 Most of the micro USB cables that you find at home are unlikely to be data cables, and it's not possible to tell just by looking.
Disable the USB cable's 5V pin.
It is also assumed that the username on the host device is pi. If that is not the case, you will have to manually edit moonraker.conf and cfgs/misc-macros.cfg and change any mentions of /home/pi to /home/yourUserName.
Your question has probably been answered already, but if it hasn't, please post in the Discussion section.
I would recommend searching for the word NOTE in this repository. There are roughly half a dozen short points amongst the various files that you should be aware of if you're using this configuration.

Installation Steps

Download OSS Klipper Configuration

Download the ZIP file containing the Klipper configuration.
The parent folder in the ZIP is Sovol-SV06-firmware-any-printer. This is relevant in the next step.
Extract only the contents of the parent folder into ~/printer_data/config.

💡 If you get a warning that you already have a moonraker.conf (which you probably do since you're already up and running Klipper), and you're not using a low powered device such as a Raspberry Pi Zero, you need to simply paste the following into your existing moonraker.conf:

[file_manager]
enable_object_processing: True

Setup Instructions

Simply add [include ./osskc.cfg] somewhere at the top of your printer.cfg.

Adjust Your Slicer

You need to adjust the start and end gcode in your slicer. The relevant macros are PRINT_START and PRINT_END. Find instructions here.

If you would like to print a purge line before your print starts, at the end of your start gcode, on a new line add PURGE_LINE.

# 🗒️ This is just an example
PRINT_START ...
PURGE_LINE

Directory Structure

This repository contains many files and folders. Some are necessary for this Klipper configuration to work, others are not.

Necessary items are marked with a ✅.
Items that can optionally be deleted are marked with a ❌.

├── cfgs ✅
│   ├── adxl-direct.cfg
│   ├── adxl-rp2040.cfg
│   ├── adxl-rpi-pico-2x.cfg
│   ├── MECHANICAL_GANTRY_CALIBRATION.cfg
│   ├── misc-macros.cfg
│   ├── PARKING.cfg
│   └── TEST_SPEED.cfg
├── CODE_OF_CONDUCT.md ❌
├── CONTRIBUTING.md ❌
├── .github ❌
│   └── ISSUE_TEMPLATE
│       ├── bug_report.md
│       └── feature_request.md
├── .gitignore ❌
├── images ❌
│   ├── cup-border.png
│   ├── githubstar.gif
│   ├── heart.gif
│   ├── logo_white_stroke.png
│   └── party_blob.gif
├── misc ❌
│   └── SuperSlicer_config_bundle.ini
├── moonraker.conf ✅ ❌ ¿? (depends if you already have this file or not)
├── osskc.cfg ✅
├── README.md ❌
└── .vscode ❌
    └── settings.json
