# 🚨 _One-Stop-Shop_ Klipper Configuration

This branch contains the OSS Klipper configuration that can be used with **any printer** running Klipper.

| Printer                     | Branch                                                                                    |
| --------------------------- | ----------------------------------------------------------------------------------------- |
| Sovol SV06                  | [master](https://github.com/bassamanator/Sovol-SV06-firmware/tree/master)                 |
| Sovol SV06 Skr-Mini-E3-V3.0 | [skr-mini-e3-v3](https://github.com/bassamanator/Sovol-SV06-firmware/tree/skr-mini-e3-v3) |
| Sovol SV06 Plus             | [sv06-plus](https://github.com/bassamanator/Sovol-SV06-firmware/tree/sv06-plus)           |
| All other printers          | ✨**You are here**✨                                                                      |

I am creating these files for my personal use and cannot be held responsible for what it might do to your printer. Use at your own risk.

## Outline

- [Features](#features)
- [Stay Up-to-Date](#stay-up-to-date)
- [Installation Steps](#installation-steps)
  - [Before You Begin](#before-you-begin)
  - [Download the Configuration](#download-the-configuration)
- [Directory Structure](#directory-structure)
- [Support Me](#support-me)
- [FAQ](#faq)
- [Useful Resources](#useful-resources)
- [Sovol Official Links](#sovol-official-links)
- [Sources](#sources)

## Features

- 💥 This Klipper configuration is an _endpoint_, meaning that it contains **everything** that you could possibly need in order to have an excellent Klipper experience! 💥 CoreXY users can rightly disagree and say that it lacks the quad gantry levelling macros. Please create a pull request if you can help in this regard!
- <img src="./images/party_blob.gif" width="20" alt=''/> Filament runout sensor usage implemented. <img src="./images/party_blob.gif" width="20" alt=''/>
- Minimum configuration settings for Mainsail/Fluiddpi to work.
- SuperSlicer config bundle that contains the printer configuration, as well as what are considered by many to be the best print settings available for any FDM printer ([Ellis' SuperSlicer Profiles](https://github.com/AndrewEllis93/Ellis-SuperSlicer-Profiles)). Find the differences between the different print setting profiles [here](https://github.com/AndrewEllis93/Ellis-SuperSlicer-Profiles/tree/master/SuperSlicer). But basically, the 45 degree profile places the seam at the back.
- Macros
  - **Improved** mechanical gantry calibration/`G34` macro that provides the user audio feedback, and time to check the calibration. ⚠️ This is for i3 style printers only, see example video [here](https://youtu.be/aVdIeIIpUAk).
  - Misc macros: `PRINT_START`, `CANCEL_PRINT`, `PRINT_END`, `PAUSE`, `RESUME`.
  - Parking macros (parks the printhead at various locations): `PARKFRONT`, `PARKFRONTLOW`, `PARKREAR`, `PARKCENTER`, `PARKBED`.
  - Load/unload filament macros.
  - Purge line macro.

## Stay Up-to-Date

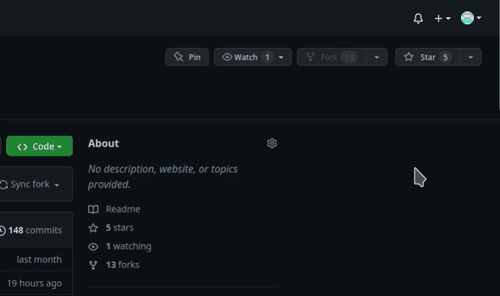

Watch for releases and updates.

<img src="./images/githubstar.gif" width="500" alt='Raspberry Pi'/>

## Installation Steps

### Before You Begin

- Know what you're getting into by reading this documentation _fully!_
- It is assumed that you are connected to your host Raspberry Pi (or other host device) via SSH, and that your printer motherboard is connected to the host via a data USB cable.
- It is assumed that the username on the host device is `pi`. If that is not the case, you will have to manually edit `moonraker.conf` and `cfgs/misc-macros.cfg` and change any mentions of `/home/pi` to `/home/yourUserName`.
- It is assumed that you already have a working `printer.cfg` and you already have your printer up and running Klipper.
- I would recommend searching for the word `NOTE` in this repository. There are roughly half a dozen short points amongst the various files that you should be aware of if you're using this configuration.

### Download the Configuration

1. [Download](https://github.com/bassamanator/Sovol-SV06-firmware/archive/refs/heads/any-printer.zip) the `ZIP` file containing the Klipper configuration.
2. The parent folder in the `ZIP` is `Sovol-SV06-firmware-any-printer`. This is relevant in the next step.
3. Extract **only** the _contents_ of the parent folder into `~/printer_data/config`.

💡 **If** you get a warning that you already have a `moonraker.conf` (which you probably do since you're already up and running Klipper), **and** you're not using a low powered device such as a Raspberry Pi Zero, you need to simply paste the following into your <u>_existing_</u> `moonraker.conf`:

```
[file_manager]
enable_object_processing: True
```

### Setup Instructions

Simply add `[include ./osskc.cfg]` somewhere at the top of your `printer.cfg`.

## Directory Structure

This repository contains many files and folders. Some are _necessary_ for this Klipper configuration to work, others are not.

- **Necessary** items are marked with a ✅.
- Items that can _optionally_ be deleted are marked with a ❌.

```
├── cfgs ✅
│   ├── adxl-direct.cfg
│   ├── adxl-rp2040.cfg
│   ├── adxl-rpi-pico-2x.cfg
│   ├── MECHANICAL_GANTRY_CALIBRATION.cfg
│   ├── misc-macros.cfg
│   ├── PARKING.cfg
│   └── TEST_SPEED.cfg
├── CODE_OF_CONDUCT.md ❌
├── CONTRIBUTING.md ❌
├── .github ❌
│   └── ISSUE_TEMPLATE
│       ├── bug_report.md
│       └── feature_request.md
├── .gitignore ❌
├── images ❌
│   ├── cup-border.png
│   ├── githubstar.gif
│   ├── heart.gif
│   ├── logo_white_stroke.png
│   └── party_blob.gif
├── misc ❌
│   └── SuperSlicer_config_bundle.ini
├── moonraker.conf ✅ ❌ ¿? (depends if you already have this file or not)
├── osskc.cfg ✅
├── README.md ❌
└── .vscode ❌
    └── settings.json
```

## Support Me

Please ⭐ star ⭐ this repository!

If you found my work useful, please consider buying me a [<img src="./images/logo_white_stroke.png" height="20" alt='Ko-fi'/>](https://ko-fi.com/bassamanator).

## FAQ

Please find answers to common questions [here](https://github.com/bassamanator/Sovol-SV06-firmware/blob/master/README.md#faq).

## Useful Resources

- [Everything Sovol SV06](https://github.com/bassamanator/everything-sovol-sv06)
- [RP2040-Zero ADXL345 Connection Klipper](https://github.com/bassamanator/rp2040-zero-adxl345-klipper)
- ⭐⭐⭐⭐⭐ [Ellis' Print Tuning Guide](https://ellis3dp.com/Print-Tuning-Guide)
- [Simplify3D Print Quality Troubleshooting Guide](https://www.simplify3d.com/resources/print-quality-troubleshooting/)

## Sources

- https://www.klipper3d.org
- https://ellis3dp.com/Print-Tuning-Guide
- https://github.com/strayr/strayr-k-macros
- https://docs.vorondesign.com/build/software/miniE3_v20_klipper.html
- https://github.com/spinixguy/Sovol-SV06-firmware
- https://www.printables.com/model/378915-sovol-sv06-buildplate-texture-and-model-for-prusas
- https://github.com/AndrewEllis93/Ellis-SuperSlicer-Profiles
